The Toolbar holds the tools for getting around your design and sizing elements precisely.
Zoom
Use the zoom dropdown in the Toolbar to set the zoom level, from 50% up to 200%. Zoom in to work on detail, or out to see the whole canvas.
Cursor modes
The cursor dropdown changes what dragging on the canvas does:
- Select (the default): click an element to select it, drag to move it, and drag its handles to resize its bounding box.
- Canvas Drag: pan around the canvas. You move your view, not the elements.
- Scale: scales elements proportionally (see below).

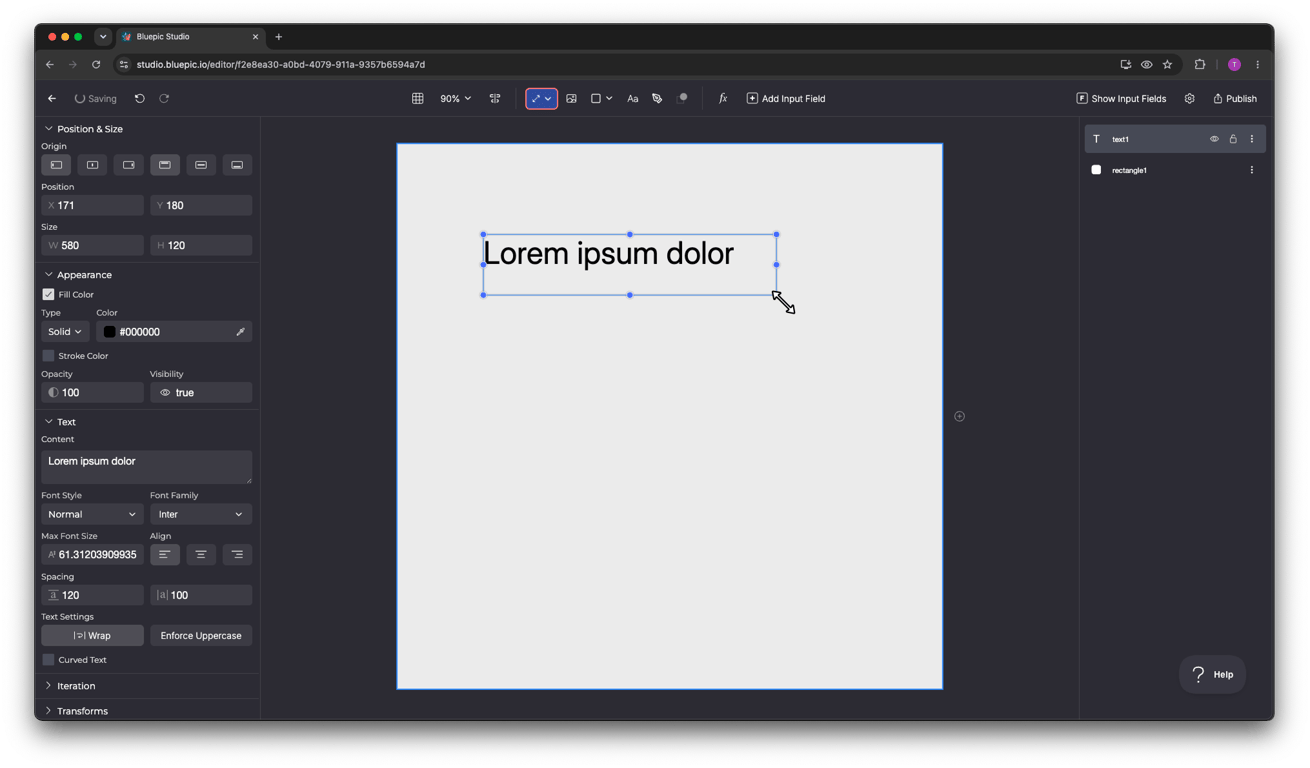

Scale
Scale is the most useful tool to understand, especially for text.
In Select mode, dragging a handle resizes the bounding box (its size and position), but it leaves the element's intrinsic properties alone. For a text element, the max font size doesn't change. Scale changes those too: the font size of text and the stroke width of shapes scale together with the element. For text especially, this is the reliable way to land on the size you want.
You can scale in two ways: switch the cursor to Scale, or hold Shift while dragging a handle.

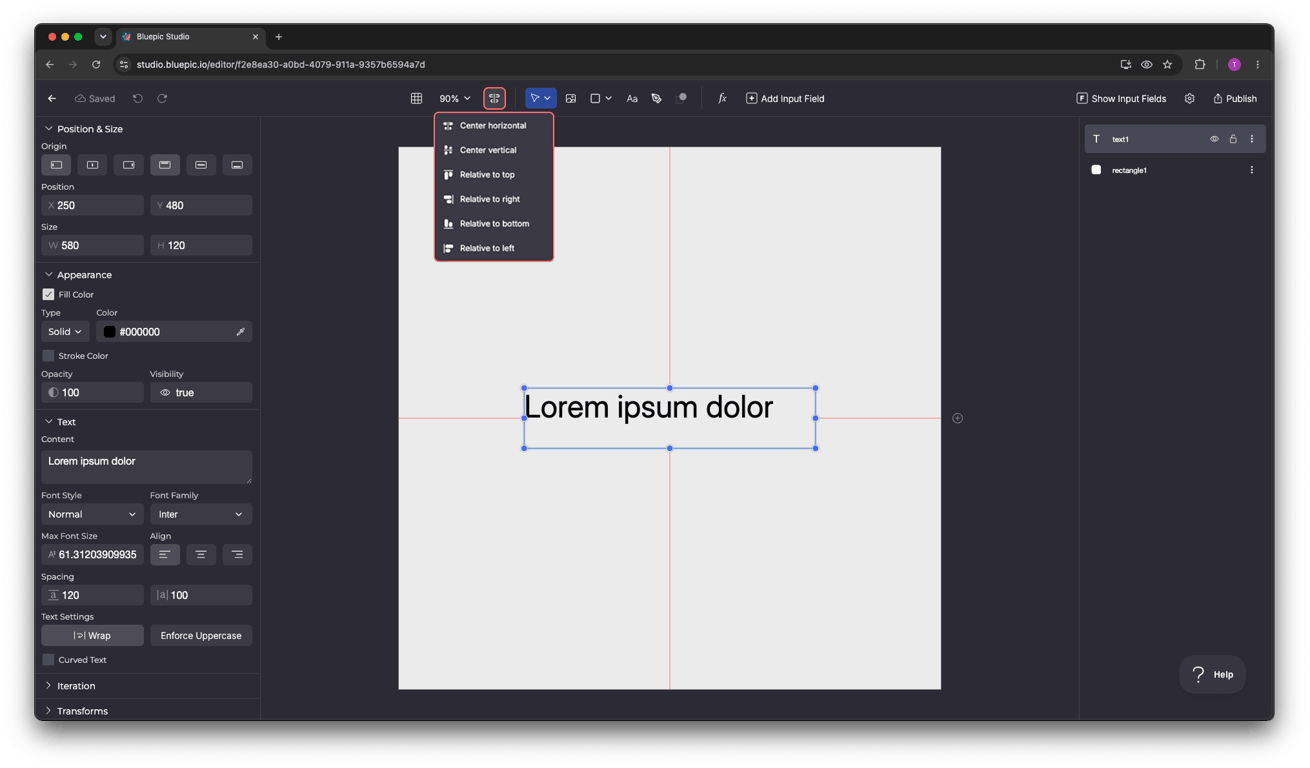

Align
Align positions the selected element with one click. It becomes available once you have a selection, with options to Center horizontal, Center vertical, or align Relative to top / right / bottom / left.
- With one element selected, it aligns relative to the canvas.
- With several elements selected, they all align relative to the last one you selected.
